Friday, July 2, 2010
Wednesday, February 24, 2010
Getting started with Mythbuntu 9.10
After I have re-formatted my PC and started a clean installation of Mythbuntu 9.10 32-bit, now is the time for our quest to make this thing work with our new TV card.
Download the driver here.
Then you will find a H826D_Installer_x86_0.10-Beta_091126.tar.gz file.
Untar it
$ tar -xvf H826D_Installer_x86_0.10-Beta_091126.tar.gz
Then
$ cd H826D_Installer_x86_0.10-Beta
You will find an INSTALL.txt inside
AVerTV Volar HX/AX/MAX Driver Install Howto
1. Launch command terminal
2. Act as root to install driver. There are two ways to do this.
(1) Use sudo. Recommended for Ubuntu Linux users. You need to type your own
password:
$ sudo ./AVERMEDIA-Linux-x86-H826D-0.10-beta.sh
Password:"Type your password here"
(2) Use su. Recommended for most users. You need to type root password:
$ su
Password:"Type root password here"
# ./AVERMEDIA-Linux-x86-H826D-0.10-beta.sh

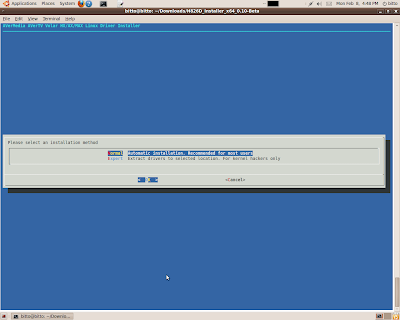

Then run the script. Make sure you are within the same directory of the script. If not, include the path of the script.
bitto@bitto:~$ ./AVERMEDIA-Linux-x64-H826D-0.10-beta.sh

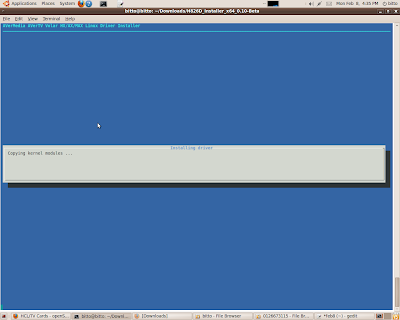

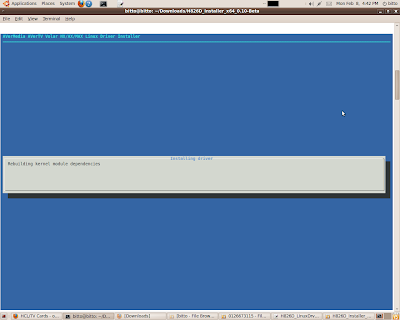

After successfully running the script, just like I've described in the previous post.
Then unplug and plug your USB card
12 12:11:52 bitto kernel: [ 7.832640] Linux video capture interface: v2.00
Feb 12 12:11:52 bitto kernel: [ 7.926196] AVerMedia USB Wrapper for H826D version 0.28 loaded
Feb 12 12:11:52 bitto kernel: [ 7.942119] h826d: module license 'AVerMedia TECHNOLOGIES, Inc.' taints kernel.
Feb 12 12:11:52 bitto kernel: [ 7.942123] Disabling lock debugging due to kernel taint
Feb 12 12:11:52 bitto kernel: [ 7.956350] AVerTV Volar HX AX MAX version 0.10 loaded
Feb 12 12:11:52 bitto kernel: [ 8.254918] EXT4-fs (sda1): internal journal on sda1:8
Feb 12 12:11:52 bitto kernel: [ 8.494350] RPC: Registered udp transport module.
Feb 12 12:11:52 bitto kernel: [ 8.494353] RPC: Registered tcp transport module.
Feb 12 12:11:52 bitto kernel: [ 9.016091] Installing knfsd (copyright (C) 1996 okir@monad.swb.de).
Feb 12 12:11:52 bitto kernel: [ 9.205696] type=1505 audit(1265947912.292:11): operation="profile_replace" pid=860 name=/sbin/dhclient3
Feb 12 12:11:52 bitto kernel: [ 9.841778] A827 registered V4L2 device video0[video]
Feb 12 12:11:52 bitto kernel: [ 9.841804] A827 registered V4L2 device vbi0[vbi]
Feb 12 12:11:52 bitto kernel: [ 9.841824] A827 registered V4L2 device radio0[radio]
Feb 12 12:11:52 bitto kernel: [ 9.842077] A827 registered ALSA sound card 1
Feb 12 12:11:52 bitto kernel: [ 9.842097] usbcore: registered new interface driver AVerTV Volar HX AX MAX
You will find these in your dmesg.
Well, the card is detected in this new platform.
Download the driver here.
Then you will find a H826D_Installer_x86_0.10-Beta_091126.tar.gz file.
Untar it
$ tar -xvf H826D_Installer_x86_0.10-Beta_091126.tar.gz
Then
$ cd H826D_Installer_x86_0.10-Beta
You will find an INSTALL.txt inside
AVerTV Volar HX/AX/MAX Driver Install Howto
1. Launch command terminal
2. Act as root to install driver. There are two ways to do this.
(1) Use sudo. Recommended for Ubuntu Linux users. You need to type your own
password:
$ sudo ./AVERMEDIA-Linux-x86-H826D-0.10-beta.sh
Password:"Type your password here"
(2) Use su. Recommended for most users. You need to type root password:
$ su
Password:"Type root password here"
# ./AVERMEDIA-Linux-x86-H826D-0.10-beta.sh
Then run the script. Make sure you are within the same directory of the script. If not, include the path of the script.
bitto@bitto:~$ ./AVERMEDIA-Linux-x64-H826D-0.10-beta.sh
After successfully running the script, just like I've described in the previous post.
Then unplug and plug your USB card
12 12:11:52 bitto kernel: [ 7.832640] Linux video capture interface: v2.00
Feb 12 12:11:52 bitto kernel: [ 7.926196] AVerMedia USB Wrapper for H826D version 0.28 loaded
Feb 12 12:11:52 bitto kernel: [ 7.942119] h826d: module license 'AVerMedia TECHNOLOGIES, Inc.' taints kernel.
Feb 12 12:11:52 bitto kernel: [ 7.942123] Disabling lock debugging due to kernel taint
Feb 12 12:11:52 bitto kernel: [ 7.956350] AVerTV Volar HX AX MAX version 0.10 loaded
Feb 12 12:11:52 bitto kernel: [ 8.254918] EXT4-fs (sda1): internal journal on sda1:8
Feb 12 12:11:52 bitto kernel: [ 8.494350] RPC: Registered udp transport module.
Feb 12 12:11:52 bitto kernel: [ 8.494353] RPC: Registered tcp transport module.
Feb 12 12:11:52 bitto kernel: [ 9.016091] Installing knfsd (copyright (C) 1996 okir@monad.swb.de).
Feb 12 12:11:52 bitto kernel: [ 9.205696] type=1505 audit(1265947912.292:11): operation="profile_replace" pid=860 name=/sbin/dhclient3
Feb 12 12:11:52 bitto kernel: [ 9.841778] A827 registered V4L2 device video0[video]
Feb 12 12:11:52 bitto kernel: [ 9.841804] A827 registered V4L2 device vbi0[vbi]
Feb 12 12:11:52 bitto kernel: [ 9.841824] A827 registered V4L2 device radio0[radio]
Feb 12 12:11:52 bitto kernel: [ 9.842077] A827 registered ALSA sound card 1
Feb 12 12:11:52 bitto kernel: [ 9.842097] usbcore: registered new interface driver AVerTV Volar HX AX MAX
You will find these in your dmesg.
Well, the card is detected in this new platform.
Wednesday, February 17, 2010
Now, Its Mythbuntu 9.10 32-bit
As you can see, that is the picture of our desktop. We have switched to Mythbuntu 9.10 32-bit now.
Until then.
Tuesday, February 9, 2010
Card Detected!
I updated my kernel yesterday. from 2.6.31-17 to 2.6.31-19
So, for today, I am hoping for a fresh start because I think I have messed up my old kernel pretty bad already.
bitto@bitto:~$ lsmod
Module Size Used by
binfmt_misc 10220 1
snd_hda_codec_realtek 277860 1
snd_hda_intel 31880 2
snd_hda_codec 87584 2 snd_hda_codec_realtek,snd_hda_intel
snd_hwdep 9352 1 snd_hda_codec
snd_pcm_oss 44704 0
snd_mixer_oss 18976 1 snd_pcm_oss
snd_pcm 93160 3 snd_hda_intel,snd_hda_codec,snd_pcm_oss
snd_seq_dummy 3460 0
snd_seq_oss 33440 0
snd_seq_midi 8192 0
snd_rawmidi 27360 1 snd_seq_midi
snd_seq_midi_event 8448 2 snd_seq_oss,snd_seq_midi
snd_seq 60608 6 snd_seq_dummy,snd_seq_oss,snd_seq_midi,snd_seq_midi_event
iptable_filter 3872 0
snd_timer 26992 2 snd_pcm,snd_seq
snd_seq_device 8308 5 snd_seq_dummy,snd_seq_oss,snd_seq_midi,snd_rawmidi,snd_seq
ip_tables 21200 1 iptable_filter
x_tables 25832 1 ip_tables
ppdev 8232 0
fglrx 2234552 32
amd64_edac_mod 26688 0
parport_pc 37352 1
edac_core 48876 1 amd64_edac_mod
i2c_piix4 11728 0
psmouse 57124 0
snd 77096 16 snd_hda_codec_realtek,snd_hda_intel,snd_hda_codec,snd_hwdep,snd_pcm_oss,snd_mixer_oss,snd_pcm,snd_seq_oss,snd_rawmidi,snd_seq,snd_timer,snd_seq_device
soundcore 9088 1 snd
snd_page_alloc 10928 2 snd_hda_intel,snd_pcm
serio_raw 6596 0
dvb_usb_af9015 32964 0
shpchp 37756 0
dvb_usb 19276 1 dvb_usb_af9015
dvb_core 104528 1 dvb_usb
lp 11908 0
parport 40528 3 ppdev,parport_pc,lp
usbhid 43968 0
sky2 55556 0
Then I installed the driver again.
bitto@bitto:~$ ./AVERMEDIA-Linux-x64-H826D-0.10-beta.sh

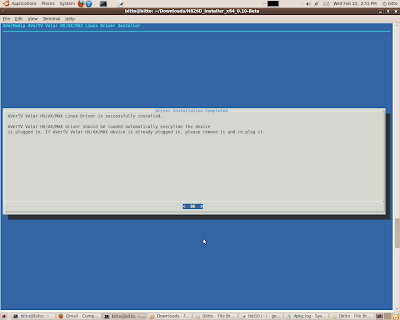

Follow all the steps and voila'.
Succesful!
Now,
bitto@bitto:~/Downloads/H826D_Installer_x64_0.10-Beta$ lsmod
Module Size Used by
h826d 677072 1
averusbh826d 105000 1 h826d
videodev 43360 2 h826d
v4l1_compat 16804 1 videodev
v4l2_compat_ioctl32 13344 1 videodev
binfmt_misc 10220 1
snd_hda_codec_realtek 277860 1
snd_hda_intel 31880 2
snd_hda_codec 87584 2 snd_hda_codec_realtek,snd_hda_intel
snd_hwdep 9352 1 snd_hda_codec
snd_pcm_oss 44704 0
snd_mixer_oss 18976 1 snd_pcm_oss
snd_pcm 93160 4 h826d,snd_hda_intel,snd_hda_codec,snd_pcm_oss
snd_seq_dummy 3460 0
snd_seq_oss 33440 0
snd_seq_midi 8192 0
snd_rawmidi 27360 1 snd_seq_midi
snd_seq_midi_event 8448 2 snd_seq_oss,snd_seq_midi
snd_seq 60608 6 snd_seq_dummy,snd_seq_oss,snd_seq_midi,snd_seq_midi_event
iptable_filter 3872 0
snd_timer 26992 2 snd_pcm,snd_seq
snd_seq_device 8308 5 snd_seq_dummy,snd_seq_oss,snd_seq_midi,snd_rawmidi,snd_seq
ip_tables 21200 1 iptable_filter
x_tables 25832 1 ip_tables
ppdev 8232 0
fglrx 2234552 32
amd64_edac_mod 26688 0
parport_pc 37352 1
edac_core 48876 1 amd64_edac_mod
i2c_piix4 11728 0
psmouse 57124 0
snd 77096 17 h826d,snd_hda_codec_realtek,snd_hda_intel,snd_hda_codec,snd_hwdep,snd_pcm_oss,snd_mixer_oss,snd_pcm,snd_seq_oss,snd_rawmidi,snd_seq,snd_timer,snd_seq_device
soundcore 9088 1 snd
snd_page_alloc 10928 2 snd_hda_intel,snd_pcm
serio_raw 6596 0
dvb_usb_af9015 32964 0
shpchp 37756 0
dvb_usb 19276 1 dvb_usb_af9015
dvb_core 104528 2 h826d,dvb_usb
lp 11908 0
parport 40528 3 ppdev,parport_pc,lp
usbhid 43968 0
sky2 55556 0
bitto@bitto:~ dmesg
.
.
.[ 6828.699051] Linux video capture interface: v2.00
[ 6828.727749] AVerMedia USB Wrapper for H826D version 0.28 loaded
[ 6828.753866] AVerTV Volar HX AX MAX version 0.10 loaded
[ 6828.753901] usbcore: registered new interface driver AVerTV Volar HX AX MAX
[ 6877.720032] usb 2-4: new high speed USB device using ehci_hcd and address 3
[ 6878.355154] usb 2-4: configuration #1 chosen from 1 choice
[ 6878.663504] A827 registered V4L2 device video0[video]
[ 6878.663548] A827 registered V4L2 device vbi0[vbi]
[ 6878.663585] A827 registered V4L2 device radio0[radio]
[ 6878.664057] A827 registered ALSA sound card 1
Detected!
Anyway, we are still making things to work with MythTV. Our MythTV-Backend seems to be accidentally uninstalled by the way. Am not sure whether it's because of the kernel updates.
Status: waiting for the answer from the mythtv mailinglist guys.
Monday, February 8, 2010
Configuring AverTV Volar AX
Now, we are trying to configure new TV capture card to make sure it'll work with MythTV or at least detected by the PC.
First, download the driver
Then, unzip.
bitto@bitto:~/Downloads$ unzip C038A827H826_Installer_x64_0.10-Beta_091126.zip Archive: C038A827H826_Installer_x64_0.10-Beta_091126.zip creating: H826D_Installer_x64_0.10-Beta/ inflating: H826D_Installer_x64_0.10-Beta/Trouble_Shooting.txt inflating: H826D_Installer_x64_0.10-Beta/TV_Player.txt inflating: H826D_Installer_x64_0.10-Beta/API.txt inflating: H826D_Installer_x64_0.10-Beta/AVERMEDIA-Linux-x64-H826D-0.10-beta.sh inflating: H826D_Installer_x64_0.10-Beta/H826D_LinuxDrv_ReleaseNotes_0.10-Beta.txt inflating: H826D_Installer_x64_0.10-Beta/INSTALL.txt bitto@bitto:~/Downloads$ cd H826D_Installer_x64_0.10-Beta/ bitto@bitto:~/Downloads/H826D_Installer_x64_0.10-Beta$ ls API.txt AVERMEDIA-Linux-x64-H826D-0.10-beta.sh H826D_LinuxDrv_ReleaseNotes_0.10-Beta.txt INSTALL.txt Trouble_Shooting.txt TV_Player.tx
Then,

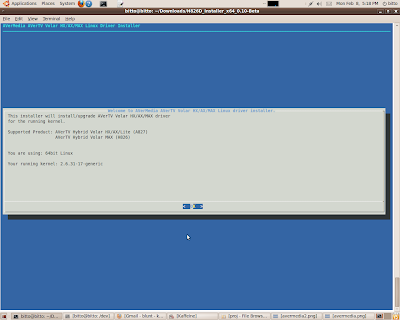

bitto@bitto:~$ sudo ./AVERMEDIA-Linux-x64-H826D-0.10-beta.sh

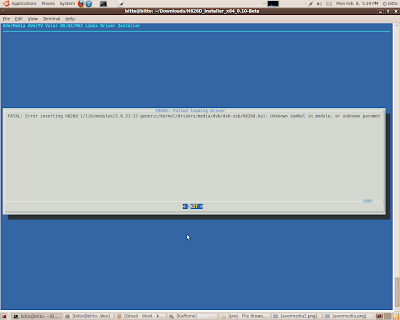

But it produces this error. I don't know what happened.
Then, I followed another source's instruction.
bitto@bitto:~$ mkdir tvdriver
bitto@bitto:~$ cd tvdriver
bitto@bitto:~/tvdriver$ sudo apt-get install mercurial linux-headers-$(uname -r) build-essential subversion gcc make
[sudo] password for bitto:
Reading package lists... Done Building dependency tree Reading state information...
Done mercurial is already the newest version.
linux-headers-2.6.31-17-generic is already the newest version. build-essential is already the newest version.
gcc is already the newest version.
make is already the newest version.
The following extra packages will be installed: libsvn1
Suggested packages: subversion-tools db4.7-util
The following NEW packages will be installed: libsvn1
subversion 0 upgraded, 2 newly installed, 0 to remove and 6 not upgraded. Need to get 1,271kB of archives. After this operation, 6,492kB of additional disk space will be used. Do you want to continue [Y/n]? y
Get:1 http://ubuntu.bytecraft.com.my karmic/main libsvn1 1.6.5dfsg-1ubuntu1 [892kB]
Get:2 http://ubuntu.bytecraft.com.my karmic/main subversion 1.6.5dfsg-1ubuntu1 [378kB] Fetched 1,271kB in 7s (178kB/s) Selecting previously deselected package libsvn1. (Reading database ... 178005 files and directories currently installed.) Unpacking libsvn1 (from .../libsvn1_1.6.5dfsg-1ubuntu1_amd64.deb) ... Selecting previously deselected package subversion. Unpacking subversion (from .../subversion_1.6.5dfsg-1ubuntu1_amd64.deb) ... Processing triggers for man-db ... Setting up libsvn1 (1.6.5dfsg-1ubuntu1) ... Setting up subversion (1.6.5dfsg-1ubuntu1) ... Processing triggers for libc-bin ... ldconfig deferred processing now taking place
bitto@bitto:~/tvdriver$ wget http://www.otit.fi/~crope/v4l-dvb/af9015/af9015_firmware_cutter/firmware_files/4.95.0/dvb-usb-af9015.fw --2010-02-08 17:35:47--
http://www.otit.fi/~crope/v4l-dvb/af9015/af9015_firmware_cutter/firmware_files/4.95.0/dvb-usb-af9015.fw
Resolving www.otit.fi... 130.231.60.120
Connecting to www.otit.fi|130.231.60.120|:80... connected. HTTP request sent, awaiting response... 200 OK Length: 15913 (16K) [text/plain] Saving to: `dvb-usb-af9015.fw' 100%[===================================================================================================================>] 15,913 22.9K/s in 0.7s 2010-02-08 17:35:49 (22.9 KB/s) - `dvb-usb-af9015.fw' saved
[15913/15913] bitto@bitto:~/tvdriver$ sudo cp dvb-usb-af9015.fw /lib/firmware/
bitto@bitto:~/tvdriver$ hg clone http://linuxtv.org/hg/~anttip/af9015
destination directory: af9015
requesting all changes adding changesets
adding manifests
adding file changes added 14067 changesets with 34889 changes to 2653 files
updating working directory 1768 files updated, 0 files merged, 0 files removed, 0 files unresolved
# make
.
.
.
CC /home/bitto/tvdriver/af9015/v4l/videobuf-core.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videobuf-core.ko CC /home/bitto/tvdriver/af9015/v4l/videobuf-dma-contig.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videobuf-dma-contig.ko CC /home/bitto/tvdriver/af9015/v4l/videobuf-dma-sg.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videobuf-dma-sg.ko CC /home/bitto/tvdriver/af9015/v4l/videobuf-dvb.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videobuf-dvb.ko CC /home/bitto/tvdriver/af9015/v4l/videobuf-vmalloc.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videobuf-vmalloc.ko CC /home/bitto/tvdriver/af9015/v4l/videocodec.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videocodec.ko CC /home/bitto/tvdriver/af9015/v4l/videodev.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videodev.ko CC /home/bitto/tvdriver/af9015/v4l/vivi.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/vivi.ko CC /home/bitto/tvdriver/af9015/v4l/vp27smpx.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/vp27smpx.ko CC /home/bitto/tvdriver/af9015/v4l/vpx3220.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/vpx3220.ko CC /home/bitto/tvdriver/af9015/v4l/w9966.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/w9966.ko CC /home/bitto/tvdriver/af9015/v4l/w9968cf.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/w9968cf.ko CC /home/bitto/tvdriver/af9015/v4l/wm8739.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/wm8739.ko CC /home/bitto/tvdriver/af9015/v4l/wm8775.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/wm8775.ko CC /home/bitto/tvdriver/af9015/v4l/xc5000.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/xc5000.ko CC /home/bitto/tvdriver/af9015/v4l/zc0301.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zc0301.ko CC /home/bitto/tvdriver/af9015/v4l/zl10036.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zl10036.ko CC /home/bitto/tvdriver/af9015/v4l/zl10039.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zl10039.ko CC /home/bitto/tvdriver/af9015/v4l/zl10353.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zl10353.ko CC /home/bitto/tvdriver/af9015/v4l/zr36016.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zr36016.ko CC /home/bitto/tvdriver/af9015/v4l/zr36050.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zr36050.ko CC /home/bitto/tvdriver/af9015/v4l/zr36060.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zr36060.ko CC /home/bitto/tvdriver/af9015/v4l/zr36067.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zr36067.ko CC /home/bitto/tvdriver/af9015/v4l/zr364xx.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zr364xx.ko make[1]: Leaving directory `/usr/src/linux-headers-2.6.31-17-generic' ./scripts/rmmod.pl check found 338 modules -e
Removing obsolete files from /lib/modules/2.6.31-17-generic/kernel/drivers/media/video: -e
Removing obsolete files from /lib/modules/2.6.31-17-generic/kernel/drivers/media/dvb/cinergyT2: -e
Removing obsolete files from /lib/modules/2.6.31-17-generic/kernel/drivers/media/common: -e
Removing obsolete files from /lib/modules/2.6.31-17-generic/kernel/drivers/media/dvb/frontends:
Installing kernel modules under /lib/modules/2.6.31-17-generic/kernel/drivers/media/: video/gspca/m5602/: gspca_m5602.ko dvb/dvb-usb/:
dvb-usb-dtv5100.ko dvb-usb-opera.ko
dvb-usb-cxusb.ko dvb-usb-vp7045.ko
dvb-usb-af9005-remote.ko dvb-usb-ttusb2.ko dvb-usb-af9015.ko dvb-usb-dib0700.ko dvb-usb-a800.ko
dvb-usb-gp8psk.ko dvb-usb-dibusb-common.ko
dvb-usb-au6610.ko dvb-usb-digitv.ko
dvb-usb.ko dvb-usb-dibusb-mc.ko dvb-usb-af9005.ko
dvb-usb-nova-t-usb2.ko dvb-usb-friio.ko
dvb-usb-ce6230.ko dvb-usb-dtt200u.ko
dvb-usb-cinergyT2.ko dvb-usb-vp702x.ko
dvb-usb-umt-010.ko dvb-usb-anysee.ko
dvb-usb-dibusb-mb.ko dvb-usb-dw2102.ko
dvb-usb-gl861.ko dvb-usb-ec168.ko dvb-usb-m920x.ko
video/saa7164/: saa7164.ko
video/zoran/: videocodec.ko zr36050.ko zr36016.ko zr36060.ko zr36067.ko
video/cx18/: cx18.ko cx18-alsa.ko video/cpia2/: cpia2.ko
dvb/b2c2/: b2c2-flexcop-pci.ko b2c2-flexcop.ko b2c2-flexcop-usb.ko video/ivtv/:
ivtvfb.ko ivtv.ko dvb/mantis/: mantis_core.ko mantis.ko hopper.ko video/hdpvr/: hdpvr.ko common/tuners/: tuner-xc2028.ko
mt2060.ko tda9887.ko mt2131.ko mc44s803.ko qt1010.ko
max2165.ko mt20xx.ko tda827x.ko tda18271.ko xc5000.ko
mxl5007t.ko tea5761.ko tuner-types.ko tda8290.ko
tuner-simple.ko mt2266.ko tea5767.ko mxl5005s.ko
video/sn9c102/: sn9c102.ko dvb/dvb-core/: dvb-core.ko video/: videobuf-dma-contig.ko vpx3220.ko videobuf-dma-sg.ko bt856.ko upd64083.ko v4l2-compat-ioctl32.ko stradis.ko videobuf-core.ko ths7303.ko tda9840.ko saa7191.ko cx2341x.ko wm8775.ko meye.ko adv7180.ko w9968cf.ko rj54n1cb0c.ko saa7185.ko tuner.ko mt9t031.ko zr364xx.ko ks0127.ko stv680.ko videobuf-dvb.ko tvaudio.ko tea6420.ko bt866.ko cafe_ccic.ko mt9v011.ko saa5246a.ko msp3400.ko tvp514x.ko tcm825x.ko soc_camera.ko wm8739.ko stkwebcam.ko saa5249.ko cpia_pp.ko soc_mediabus.ko tda7432.ko w9966.ko ir-kbd-i2c.ko mt9m001.ko upd64031a.ko ov511.ko tea6415c.ko dabusb.ko bt819.ko cpia_usb.ko videodev.ko mxb.ko tda9875.ko adv7175.ko vivi.ko soc_camera_platform.ko adv7343.ko cs53l32a.ko s2255drv.ko btcx-risc.ko se401.ko saa7110.ko saa7115.ko saa6588.ko v4l2-common.ko hexium_gemini.ko hexium_orion.ko tw9910.ko tvp5150.ko mt9m111.ko vp27smpx.ko adv7170.ko ov772x.ko ov7670.ko saa7127.ko m52790.ko ov9640.ko mt9v022.ko v4l1-compat.ko videobuf-vmalloc.ko v4l2-int-device.ko c-qcam.ko tveeprom.ko cs5345.ko saa717x.ko cpia.ko tlv320aic23b.ko bw-qcam.ko mt9t112.ko video/cx23885/: cx23885.ko dvb/bt8xx/: dst_ca.ko dvb-bt8xx.ko bt878.ko dst.ko dvb/siano/: smssdio.ko smsdvb.ko smsusb.ko smsmdtv.ko video/cx25840/: cx25840.ko dvb/ttusb-dec/: ttusbdecfe.ko ttusb_dec.ko dvb/dm1105/: dm1105.ko video/cx231xx/: cx231xx.ko cx231xx-dvb.ko cx231xx-alsa.ko video/saa7134/: saa6752hs.ko saa7134-empress.ko saa7134-alsa.ko saa7134-dvb.ko saa7134.ko dvb/ttpci/: dvb-ttpci.ko budget-patch.ko ttpci-eeprom.ko budget-av.ko budget.ko budget-core.ko budget-ci.ko video/et61x251/: et61x251.ko video/gspca/gl860/: gspca_gl860.ko IR/: ir-core.ko ir-common.ko radio/si470x/: radio-usb-si470x.ko dvb/frontends/: nxt6000.ko dib7000m.ko dib0090.ko drx397xD.ko s5h1411.ko tda665x.ko dib8000.ko nxt200x.ko s921.ko s5h1409.ko atbm8830.ko dib3000mb.ko ec100.ko lgs8gl5.ko dib3000mc.ko stv0900.ko sp8870.ko tda8083.ko stv0297.ko tda10086.ko zl10353.ko mb86a16.ko lgs8gxx.ko stv0299.ko dvb-pll.ko cx22702.ko lgdt3304.ko tda8261.ko tua6100.ko bcm3510.ko stb0899.ko or51211.ko cx24113.ko tda826x.ko af9013.ko au8522.ko si21xx.ko s5h1420.ko stv090x.ko stv0288.ko mt352.ko zl10039.ko isl6405.ko sp887x.ko dibx000_common.ko isl6421.ko mt312.ko or51132.ko tda1004x.ko stv6110.ko itd1000.ko stv6110x.ko zl10036.ko lgdt3305.ko dib7000p.ko l64781.ko ves1x93.ko stb6100.ko ves1820.ko dib0070.ko cx22700.ko cx24110.ko dvb_dummy_fe.ko lgdt330x.ko cx24123.ko lnbp21.ko stb6000.ko isl6423.ko tda10023.ko cx24116.ko tda10021.ko tda10048.ko ds3000.ko video/bt8xx/: bttv.ko video/cx88/: cx8802.ko cx8800.ko cx88-blackbird.ko cx88-alsa.ko cx88xx.ko cx88-vp3054-i2c.ko cx88-dvb.ko video/gspca/: gspca_stk014.ko gspca_spca501.ko gspca_spca500.ko gspca_mars.ko gspca_stv0680.ko gspca_sunplus.ko gspca_vc032x.ko gspca_benq.ko gspca_spca505.ko gspca_sn9c20x.ko gspca_zc3xx.ko gspca_sq905c.ko gspca_sonixb.ko gspca_etoms.ko gspca_pac7302.ko gspca_pac207.ko gspca_ov534_9.ko gspca_spca508.ko gspca_sq905.ko gspca_sn9c2028.ko gspca_t613.ko gspca_spca561.ko gspca_ov534.ko gspca_tv8532.ko gspca_jeilinj.ko gspca_spca506.ko gspca_sonixj.ko gspca_main.ko gspca_cpia1.ko gspca_conex.ko gspca_mr97310a.ko gspca_pac7311.ko gspca_ov519.ko gspca_finepix.ko dvb/pluto2/: pluto2.ko video/usbvideo/: ibmcam.ko usbvideo.ko vicam.ko ultracam.ko konicawc.ko quickcam_messenger.ko video/usbvision/: usbvision.ko common/: saa7146_vv.ko saa7146.ko video/gspca/stv06xx/: gspca_stv06xx.ko video/em28xx/: em28xx-dvb.ko em28xx-alsa.ko em28xx.ko radio/: dsbr100.ko radio-maestro.ko si4713-i2c.ko tef6862.ko radio-maxiradio.ko radio-tea5764.ko radio-si4713.ko radio-gemtek-pci.ko radio-mr800.ko video/pvrusb2/: pvrusb2.ko dvb/pt1/: earth-pt1.ko video/uvc/: uvcvideo.ko dvb/ttusb-budget/: dvb-ttusb-budget.ko video/pwc/: pwc.ko video/ovcamchip/: ovcamchip.ko video/zc0301/: zc0301.ko video/au0828/: au0828.ko /sbin/depmod -a 2.6.31-17-generic make -C firmware install make[1]:
Entering directory `/home/bitto/tvdriver/af9015/v4l/firmware' Installing firmwares at /lib/firmware: vicam/firmware.fw dabusb/firmware.fw dabusb/bitstream.bin ttusb-budget/dspbootcode.bin cpia2/stv0672_vp4.bin av7110/bootcode.bin make[1]: Leaving directory `/home/bitto/tvdriver/af9015/v4l/firmware'
bitto@bitto:~/tvdriver/af9015/v4l$ echo dvb_usb_af9015 | sudo tee -a /etc/modules dvb_usb_af9015
When I dmesg, this is the output.
# dmesg 13.018589] Linux video capture interface: v2.00 [ 13.022213] HDA Intel 0000:00:14.2: PCI INT A -> GSI 16 (level, low) -> IRQ 16 [ 13.067954] AVerMedia USB Wrapper for H826D version 0.28 loaded [ 13.127233] hda_codec: Unknown model for ALC662 rev1, trying auto-probe from BIOS... [ 13.128844] input: HDA Digital PCBeep as /devices/pci0000:00/0000:00:14.2/input/input5 [ 13.191101] EXT4-fs (sda1): internal journal on sda1:8 [ 13.198021] h826d: disagrees about version of symbol dvb_dmxdev_release [ 13.198025] h826d: Unknown symbol dvb_dmxdev_release [ 13.198097] h826d: disagrees about version of symbol video_devdata [ 13.198098] h826d: Unknown symbol video_devdata [ 13.198789] h826d: disagrees about version of symbol dvb_dmx_init [ 13.198795] h826d: Unknown symbol dvb_dmx_init [ 13.199178] h826d: disagrees about version of symbol dvb_register_adapter [ 13.199184] h826d: Unknown symbol dvb_register_adapter [ 13.199390] h826d: disagrees about version of symbol dvb_dmx_release [ 13.199396] h826d: Unknown symbol dvb_dmx_release [ 13.200703] h826d: disagrees about version of symbol dvb_dmxdev_init [ 13.200704] h826d: Unknown symbol dvb_dmxdev_init [ 13.200840] h826d: disagrees about version of symbol dvb_unregister_frontend [ 13.200842] h826d: Unknown symbol dvb_unregister_frontend [ 13.201138] h826d: disagrees about version of symbol video_register_device [ 13.201144] h826d: Unknown symbol video_register_device [ 13.201484] h826d: disagrees about version of symbol dvb_dmx_swfilter_packets [ 13.201490] h826d: Unknown symbol dvb_dmx_swfilter_packets [ 13.202997] h826d: disagrees about version of symbol video_device_release [ 13.203003] h826d: Unknown symbol video_device_release [ 13.203461] h826d: disagrees about version of symbol video_device_alloc [ 13.203463] h826d: Unknown symbol video_device_alloc [ 13.203984] h826d: disagrees about version of symbol video_unregister_device [ 13.203990] h826d: Unknown symbol video_unregister_device [ 13.204126] h826d: disagrees about version of symbol dvb_unregister_adapter [ 13.204132] h826d: Unknown symbol dvb_unregister_adapter [ 13.206252] h826d: disagrees about version of symbol dvb_register_frontend [ 13.206258] h826d: Unknown symbol dvb_register_frontend [ 13.208726] usbcore: registered new interface driver dvb_usb_af9015 [ 13.348259] __ratelimit: 9 callbacks suppressed [ 13.348262] type=1505 audit(1265627539.474:14): operation="profile_replace" pid=920 name=/usr/share/gdm/guest-session/Xsession [ 13.349556] type=1505 audit(1265627539.474:15): operation="profile_replace" pid=921 name=/sbin/dhclient3 [ 13.349816] type=1505 audit(1265627539.474:16): operation="profile_replace" pid=921 name=/usr/lib/NetworkManager/nm-dhcp-client.action [ 13.349993] type=1505 audit(1265627539.474:17): operation="profile_replace" pid=921 name=/usr/lib/connman/scripts/dhclient-script [ 13.353228] type=1505 audit(1265627539.474:18): operation="profile_replace" pid=922 name=/usr/bin/evince [ 13.357574] type=1505 audit(1265627539.484:19): operation="profile_replace" pid=922 name=/usr/bin/evince-previewer [ 13.360008] type=1505 audit(1265627539.484:20): operation="profile_replace" pid=922 name=/usr/bin/evince-thumbnailer [ 13.364740] type=1505 audit(1265627539.494:21): operation="profile_replace" pid=924 name=/usr/lib/cups/backend/cups-pdf [ 13.365062] type=1505 audit(1265627539.494:22): operation="profile_replace" pid=924 name=/usr/sbin/cupsd [ 13.366554] type=1505 audit(1265627539.494:23): operation="profile_replace" pid=925 name=/usr/sbin/mysqld
But now, we cannot watch TV even from TVTime.
Stuck again.
First, download the driver
Then, unzip.
bitto@bitto:~/Downloads$ unzip C038A827H826_Installer_x64_0.10-Beta_091126.zip Archive: C038A827H826_Installer_x64_0.10-Beta_091126.zip creating: H826D_Installer_x64_0.10-Beta/ inflating: H826D_Installer_x64_0.10-Beta/Trouble_Shooting.txt inflating: H826D_Installer_x64_0.10-Beta/TV_Player.txt inflating: H826D_Installer_x64_0.10-Beta/API.txt inflating: H826D_Installer_x64_0.10-Beta/AVERMEDIA-Linux-x64-H826D-0.10-beta.sh inflating: H826D_Installer_x64_0.10-Beta/H826D_LinuxDrv_ReleaseNotes_0.10-Beta.txt inflating: H826D_Installer_x64_0.10-Beta/INSTALL.txt bitto@bitto:~/Downloads$ cd H826D_Installer_x64_0.10-Beta/ bitto@bitto:~/Downloads/H826D_Installer_x64_0.10-Beta$ ls API.txt AVERMEDIA-Linux-x64-H826D-0.10-beta.sh H826D_LinuxDrv_ReleaseNotes_0.10-Beta.txt INSTALL.txt Trouble_Shooting.txt TV_Player.tx
Then,
bitto@bitto:~$ sudo ./AVERMEDIA-Linux-x64-H826D-0.10-beta.sh
But it produces this error. I don't know what happened.
Then, I followed another source's instruction.
bitto@bitto:~$ mkdir tvdriver
bitto@bitto:~$ cd tvdriver
bitto@bitto:~/tvdriver$ sudo apt-get install mercurial linux-headers-$(uname -r) build-essential subversion gcc make
[sudo] password for bitto:
Reading package lists... Done Building dependency tree Reading state information...
Done mercurial is already the newest version.
linux-headers-2.6.31-17-generic is already the newest version. build-essential is already the newest version.
gcc is already the newest version.
make is already the newest version.
The following extra packages will be installed: libsvn1
Suggested packages: subversion-tools db4.7-util
The following NEW packages will be installed: libsvn1
subversion 0 upgraded, 2 newly installed, 0 to remove and 6 not upgraded. Need to get 1,271kB of archives. After this operation, 6,492kB of additional disk space will be used. Do you want to continue [Y/n]? y
Get:1 http://ubuntu.bytecraft.com.my karmic/main libsvn1 1.6.5dfsg-1ubuntu1 [892kB]
Get:2 http://ubuntu.bytecraft.com.my karmic/main subversion 1.6.5dfsg-1ubuntu1 [378kB] Fetched 1,271kB in 7s (178kB/s) Selecting previously deselected package libsvn1. (Reading database ... 178005 files and directories currently installed.) Unpacking libsvn1 (from .../libsvn1_1.6.5dfsg-1ubuntu1_amd64.deb) ... Selecting previously deselected package subversion. Unpacking subversion (from .../subversion_1.6.5dfsg-1ubuntu1_amd64.deb) ... Processing triggers for man-db ... Setting up libsvn1 (1.6.5dfsg-1ubuntu1) ... Setting up subversion (1.6.5dfsg-1ubuntu1) ... Processing triggers for libc-bin ... ldconfig deferred processing now taking place
bitto@bitto:~/tvdriver$ wget http://www.otit.fi/~crope/v4l-dvb/af9015/af9015_firmware_cutter/firmware_files/4.95.0/dvb-usb-af9015.fw --2010-02-08 17:35:47--
http://www.otit.fi/~crope/v4l-dvb/af9015/af9015_firmware_cutter/firmware_files/4.95.0/dvb-usb-af9015.fw
Resolving www.otit.fi... 130.231.60.120
Connecting to www.otit.fi|130.231.60.120|:80... connected. HTTP request sent, awaiting response... 200 OK Length: 15913 (16K) [text/plain] Saving to: `dvb-usb-af9015.fw' 100%[===================================================================================================================>] 15,913 22.9K/s in 0.7s 2010-02-08 17:35:49 (22.9 KB/s) - `dvb-usb-af9015.fw' saved
[15913/15913] bitto@bitto:~/tvdriver$ sudo cp dvb-usb-af9015.fw /lib/firmware/
bitto@bitto:~/tvdriver$ hg clone http://linuxtv.org/hg/~anttip/af9015
destination directory: af9015
requesting all changes adding changesets
adding manifests
adding file changes added 14067 changesets with 34889 changes to 2653 files
updating working directory 1768 files updated, 0 files merged, 0 files removed, 0 files unresolved
# make
.
.
.
CC /home/bitto/tvdriver/af9015/v4l/videobuf-core.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videobuf-core.ko CC /home/bitto/tvdriver/af9015/v4l/videobuf-dma-contig.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videobuf-dma-contig.ko CC /home/bitto/tvdriver/af9015/v4l/videobuf-dma-sg.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videobuf-dma-sg.ko CC /home/bitto/tvdriver/af9015/v4l/videobuf-dvb.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videobuf-dvb.ko CC /home/bitto/tvdriver/af9015/v4l/videobuf-vmalloc.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videobuf-vmalloc.ko CC /home/bitto/tvdriver/af9015/v4l/videocodec.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videocodec.ko CC /home/bitto/tvdriver/af9015/v4l/videodev.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/videodev.ko CC /home/bitto/tvdriver/af9015/v4l/vivi.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/vivi.ko CC /home/bitto/tvdriver/af9015/v4l/vp27smpx.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/vp27smpx.ko CC /home/bitto/tvdriver/af9015/v4l/vpx3220.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/vpx3220.ko CC /home/bitto/tvdriver/af9015/v4l/w9966.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/w9966.ko CC /home/bitto/tvdriver/af9015/v4l/w9968cf.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/w9968cf.ko CC /home/bitto/tvdriver/af9015/v4l/wm8739.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/wm8739.ko CC /home/bitto/tvdriver/af9015/v4l/wm8775.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/wm8775.ko CC /home/bitto/tvdriver/af9015/v4l/xc5000.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/xc5000.ko CC /home/bitto/tvdriver/af9015/v4l/zc0301.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zc0301.ko CC /home/bitto/tvdriver/af9015/v4l/zl10036.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zl10036.ko CC /home/bitto/tvdriver/af9015/v4l/zl10039.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zl10039.ko CC /home/bitto/tvdriver/af9015/v4l/zl10353.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zl10353.ko CC /home/bitto/tvdriver/af9015/v4l/zr36016.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zr36016.ko CC /home/bitto/tvdriver/af9015/v4l/zr36050.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zr36050.ko CC /home/bitto/tvdriver/af9015/v4l/zr36060.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zr36060.ko CC /home/bitto/tvdriver/af9015/v4l/zr36067.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zr36067.ko CC /home/bitto/tvdriver/af9015/v4l/zr364xx.mod.o LD
[M] /home/bitto/tvdriver/af9015/v4l/zr364xx.ko make[1]: Leaving directory `/usr/src/linux-headers-2.6.31-17-generic' ./scripts/rmmod.pl check found 338 modules -e
Removing obsolete files from /lib/modules/2.6.31-17-generic/kernel/drivers/media/video: -e
Removing obsolete files from /lib/modules/2.6.31-17-generic/kernel/drivers/media/dvb/cinergyT2: -e
Removing obsolete files from /lib/modules/2.6.31-17-generic/kernel/drivers/media/common: -e
Removing obsolete files from /lib/modules/2.6.31-17-generic/kernel/drivers/media/dvb/frontends:
Installing kernel modules under /lib/modules/2.6.31-17-generic/kernel/drivers/media/: video/gspca/m5602/: gspca_m5602.ko dvb/dvb-usb/:
dvb-usb-dtv5100.ko dvb-usb-opera.ko
dvb-usb-cxusb.ko dvb-usb-vp7045.ko
dvb-usb-af9005-remote.ko dvb-usb-ttusb2.ko dvb-usb-af9015.ko dvb-usb-dib0700.ko dvb-usb-a800.ko
dvb-usb-gp8psk.ko dvb-usb-dibusb-common.ko
dvb-usb-au6610.ko dvb-usb-digitv.ko
dvb-usb.ko dvb-usb-dibusb-mc.ko dvb-usb-af9005.ko
dvb-usb-nova-t-usb2.ko dvb-usb-friio.ko
dvb-usb-ce6230.ko dvb-usb-dtt200u.ko
dvb-usb-cinergyT2.ko dvb-usb-vp702x.ko
dvb-usb-umt-010.ko dvb-usb-anysee.ko
dvb-usb-dibusb-mb.ko dvb-usb-dw2102.ko
dvb-usb-gl861.ko dvb-usb-ec168.ko dvb-usb-m920x.ko
video/saa7164/: saa7164.ko
video/zoran/: videocodec.ko zr36050.ko zr36016.ko zr36060.ko zr36067.ko
video/cx18/: cx18.ko cx18-alsa.ko video/cpia2/: cpia2.ko
dvb/b2c2/: b2c2-flexcop-pci.ko b2c2-flexcop.ko b2c2-flexcop-usb.ko video/ivtv/:
ivtvfb.ko ivtv.ko dvb/mantis/: mantis_core.ko mantis.ko hopper.ko video/hdpvr/: hdpvr.ko common/tuners/: tuner-xc2028.ko
mt2060.ko tda9887.ko mt2131.ko mc44s803.ko qt1010.ko
max2165.ko mt20xx.ko tda827x.ko tda18271.ko xc5000.ko
mxl5007t.ko tea5761.ko tuner-types.ko tda8290.ko
tuner-simple.ko mt2266.ko tea5767.ko mxl5005s.ko
video/sn9c102/: sn9c102.ko dvb/dvb-core/: dvb-core.ko video/: videobuf-dma-contig.ko vpx3220.ko videobuf-dma-sg.ko bt856.ko upd64083.ko v4l2-compat-ioctl32.ko stradis.ko videobuf-core.ko ths7303.ko tda9840.ko saa7191.ko cx2341x.ko wm8775.ko meye.ko adv7180.ko w9968cf.ko rj54n1cb0c.ko saa7185.ko tuner.ko mt9t031.ko zr364xx.ko ks0127.ko stv680.ko videobuf-dvb.ko tvaudio.ko tea6420.ko bt866.ko cafe_ccic.ko mt9v011.ko saa5246a.ko msp3400.ko tvp514x.ko tcm825x.ko soc_camera.ko wm8739.ko stkwebcam.ko saa5249.ko cpia_pp.ko soc_mediabus.ko tda7432.ko w9966.ko ir-kbd-i2c.ko mt9m001.ko upd64031a.ko ov511.ko tea6415c.ko dabusb.ko bt819.ko cpia_usb.ko videodev.ko mxb.ko tda9875.ko adv7175.ko vivi.ko soc_camera_platform.ko adv7343.ko cs53l32a.ko s2255drv.ko btcx-risc.ko se401.ko saa7110.ko saa7115.ko saa6588.ko v4l2-common.ko hexium_gemini.ko hexium_orion.ko tw9910.ko tvp5150.ko mt9m111.ko vp27smpx.ko adv7170.ko ov772x.ko ov7670.ko saa7127.ko m52790.ko ov9640.ko mt9v022.ko v4l1-compat.ko videobuf-vmalloc.ko v4l2-int-device.ko c-qcam.ko tveeprom.ko cs5345.ko saa717x.ko cpia.ko tlv320aic23b.ko bw-qcam.ko mt9t112.ko video/cx23885/: cx23885.ko dvb/bt8xx/: dst_ca.ko dvb-bt8xx.ko bt878.ko dst.ko dvb/siano/: smssdio.ko smsdvb.ko smsusb.ko smsmdtv.ko video/cx25840/: cx25840.ko dvb/ttusb-dec/: ttusbdecfe.ko ttusb_dec.ko dvb/dm1105/: dm1105.ko video/cx231xx/: cx231xx.ko cx231xx-dvb.ko cx231xx-alsa.ko video/saa7134/: saa6752hs.ko saa7134-empress.ko saa7134-alsa.ko saa7134-dvb.ko saa7134.ko dvb/ttpci/: dvb-ttpci.ko budget-patch.ko ttpci-eeprom.ko budget-av.ko budget.ko budget-core.ko budget-ci.ko video/et61x251/: et61x251.ko video/gspca/gl860/: gspca_gl860.ko IR/: ir-core.ko ir-common.ko radio/si470x/: radio-usb-si470x.ko dvb/frontends/: nxt6000.ko dib7000m.ko dib0090.ko drx397xD.ko s5h1411.ko tda665x.ko dib8000.ko nxt200x.ko s921.ko s5h1409.ko atbm8830.ko dib3000mb.ko ec100.ko lgs8gl5.ko dib3000mc.ko stv0900.ko sp8870.ko tda8083.ko stv0297.ko tda10086.ko zl10353.ko mb86a16.ko lgs8gxx.ko stv0299.ko dvb-pll.ko cx22702.ko lgdt3304.ko tda8261.ko tua6100.ko bcm3510.ko stb0899.ko or51211.ko cx24113.ko tda826x.ko af9013.ko au8522.ko si21xx.ko s5h1420.ko stv090x.ko stv0288.ko mt352.ko zl10039.ko isl6405.ko sp887x.ko dibx000_common.ko isl6421.ko mt312.ko or51132.ko tda1004x.ko stv6110.ko itd1000.ko stv6110x.ko zl10036.ko lgdt3305.ko dib7000p.ko l64781.ko ves1x93.ko stb6100.ko ves1820.ko dib0070.ko cx22700.ko cx24110.ko dvb_dummy_fe.ko lgdt330x.ko cx24123.ko lnbp21.ko stb6000.ko isl6423.ko tda10023.ko cx24116.ko tda10021.ko tda10048.ko ds3000.ko video/bt8xx/: bttv.ko video/cx88/: cx8802.ko cx8800.ko cx88-blackbird.ko cx88-alsa.ko cx88xx.ko cx88-vp3054-i2c.ko cx88-dvb.ko video/gspca/: gspca_stk014.ko gspca_spca501.ko gspca_spca500.ko gspca_mars.ko gspca_stv0680.ko gspca_sunplus.ko gspca_vc032x.ko gspca_benq.ko gspca_spca505.ko gspca_sn9c20x.ko gspca_zc3xx.ko gspca_sq905c.ko gspca_sonixb.ko gspca_etoms.ko gspca_pac7302.ko gspca_pac207.ko gspca_ov534_9.ko gspca_spca508.ko gspca_sq905.ko gspca_sn9c2028.ko gspca_t613.ko gspca_spca561.ko gspca_ov534.ko gspca_tv8532.ko gspca_jeilinj.ko gspca_spca506.ko gspca_sonixj.ko gspca_main.ko gspca_cpia1.ko gspca_conex.ko gspca_mr97310a.ko gspca_pac7311.ko gspca_ov519.ko gspca_finepix.ko dvb/pluto2/: pluto2.ko video/usbvideo/: ibmcam.ko usbvideo.ko vicam.ko ultracam.ko konicawc.ko quickcam_messenger.ko video/usbvision/: usbvision.ko common/: saa7146_vv.ko saa7146.ko video/gspca/stv06xx/: gspca_stv06xx.ko video/em28xx/: em28xx-dvb.ko em28xx-alsa.ko em28xx.ko radio/: dsbr100.ko radio-maestro.ko si4713-i2c.ko tef6862.ko radio-maxiradio.ko radio-tea5764.ko radio-si4713.ko radio-gemtek-pci.ko radio-mr800.ko video/pvrusb2/: pvrusb2.ko dvb/pt1/: earth-pt1.ko video/uvc/: uvcvideo.ko dvb/ttusb-budget/: dvb-ttusb-budget.ko video/pwc/: pwc.ko video/ovcamchip/: ovcamchip.ko video/zc0301/: zc0301.ko video/au0828/: au0828.ko /sbin/depmod -a 2.6.31-17-generic make -C firmware install make[1]:
Entering directory `/home/bitto/tvdriver/af9015/v4l/firmware' Installing firmwares at /lib/firmware: vicam/firmware.fw dabusb/firmware.fw dabusb/bitstream.bin ttusb-budget/dspbootcode.bin cpia2/stv0672_vp4.bin av7110/bootcode.bin make[1]: Leaving directory `/home/bitto/tvdriver/af9015/v4l/firmware'
bitto@bitto:~/tvdriver/af9015/v4l$ echo dvb_usb_af9015 | sudo tee -a /etc/modules dvb_usb_af9015
When I dmesg, this is the output.
# dmesg 13.018589] Linux video capture interface: v2.00 [ 13.022213] HDA Intel 0000:00:14.2: PCI INT A -> GSI 16 (level, low) -> IRQ 16 [ 13.067954] AVerMedia USB Wrapper for H826D version 0.28 loaded [ 13.127233] hda_codec: Unknown model for ALC662 rev1, trying auto-probe from BIOS... [ 13.128844] input: HDA Digital PCBeep as /devices/pci0000:00/0000:00:14.2/input/input5 [ 13.191101] EXT4-fs (sda1): internal journal on sda1:8 [ 13.198021] h826d: disagrees about version of symbol dvb_dmxdev_release [ 13.198025] h826d: Unknown symbol dvb_dmxdev_release [ 13.198097] h826d: disagrees about version of symbol video_devdata [ 13.198098] h826d: Unknown symbol video_devdata [ 13.198789] h826d: disagrees about version of symbol dvb_dmx_init [ 13.198795] h826d: Unknown symbol dvb_dmx_init [ 13.199178] h826d: disagrees about version of symbol dvb_register_adapter [ 13.199184] h826d: Unknown symbol dvb_register_adapter [ 13.199390] h826d: disagrees about version of symbol dvb_dmx_release [ 13.199396] h826d: Unknown symbol dvb_dmx_release [ 13.200703] h826d: disagrees about version of symbol dvb_dmxdev_init [ 13.200704] h826d: Unknown symbol dvb_dmxdev_init [ 13.200840] h826d: disagrees about version of symbol dvb_unregister_frontend [ 13.200842] h826d: Unknown symbol dvb_unregister_frontend [ 13.201138] h826d: disagrees about version of symbol video_register_device [ 13.201144] h826d: Unknown symbol video_register_device [ 13.201484] h826d: disagrees about version of symbol dvb_dmx_swfilter_packets [ 13.201490] h826d: Unknown symbol dvb_dmx_swfilter_packets [ 13.202997] h826d: disagrees about version of symbol video_device_release [ 13.203003] h826d: Unknown symbol video_device_release [ 13.203461] h826d: disagrees about version of symbol video_device_alloc [ 13.203463] h826d: Unknown symbol video_device_alloc [ 13.203984] h826d: disagrees about version of symbol video_unregister_device [ 13.203990] h826d: Unknown symbol video_unregister_device [ 13.204126] h826d: disagrees about version of symbol dvb_unregister_adapter [ 13.204132] h826d: Unknown symbol dvb_unregister_adapter [ 13.206252] h826d: disagrees about version of symbol dvb_register_frontend [ 13.206258] h826d: Unknown symbol dvb_register_frontend [ 13.208726] usbcore: registered new interface driver dvb_usb_af9015 [ 13.348259] __ratelimit: 9 callbacks suppressed [ 13.348262] type=1505 audit(1265627539.474:14): operation="profile_replace" pid=920 name=/usr/share/gdm/guest-session/Xsession [ 13.349556] type=1505 audit(1265627539.474:15): operation="profile_replace" pid=921 name=/sbin/dhclient3 [ 13.349816] type=1505 audit(1265627539.474:16): operation="profile_replace" pid=921 name=/usr/lib/NetworkManager/nm-dhcp-client.action [ 13.349993] type=1505 audit(1265627539.474:17): operation="profile_replace" pid=921 name=/usr/lib/connman/scripts/dhclient-script [ 13.353228] type=1505 audit(1265627539.474:18): operation="profile_replace" pid=922 name=/usr/bin/evince [ 13.357574] type=1505 audit(1265627539.484:19): operation="profile_replace" pid=922 name=/usr/bin/evince-previewer [ 13.360008] type=1505 audit(1265627539.484:20): operation="profile_replace" pid=922 name=/usr/bin/evince-thumbnailer [ 13.364740] type=1505 audit(1265627539.494:21): operation="profile_replace" pid=924 name=/usr/lib/cups/backend/cups-pdf [ 13.365062] type=1505 audit(1265627539.494:22): operation="profile_replace" pid=924 name=/usr/sbin/cupsd [ 13.366554] type=1505 audit(1265627539.494:23): operation="profile_replace" pid=925 name=/usr/sbin/mysqld

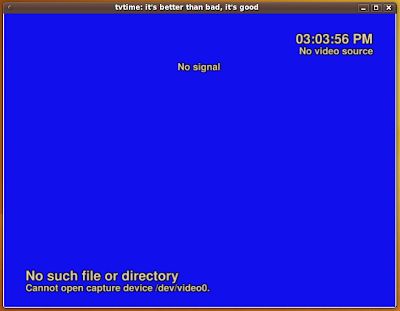

But now, we cannot watch TV even from TVTime.
Stuck again.
New TV Card
We bought a new card. AverTV Volar AX. Just in case our current card will not work for MythTV. We found that it supports Linux and MythTV from here.
Hope this'll work.
Hope this'll work.
Sunday, February 7, 2010
Hanging TVTime
We are trying to scan the channel using TVTime. But our PC 'hang'ed everytime we're doing it. Now, we're stuck here. Still finding solutions to it though..
Stuck..
Stuck..
Subscribe to:
Posts (Atom)
